Ligature-Resistant Corterra Solid Surface Alcove Basin - Multiple Stations,Model WH3822 thru WH3824
Model WH3822 thru WH3824.
Download Submittal

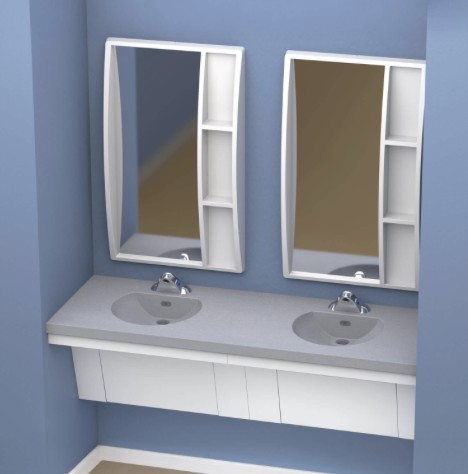

BestCare Ligature-Resistant Corterra Solid Surface Alcove Basin - Multiple Stations
You have an alcove. You have a basin. Will the basin fit in the alcove? Of course, it will. The Whitehall #BestCare Ligature-Resistant Alcove Basin is a seamless, linear, and artful basin of smooth solid surface with a custom fit to that alcove.
This page shows the multiple stations units accommodating two, three or four users at the same time. Single station is also offered.
As part of Whitehall's #BestCare line, you can be assured that it's designed for the utmost safety with ligature-resistant features. The Alcove Basin also complies with ADA compliance guidelines (also OBC, CBC).
As versatile and customizable as it is easy to order install, and maintain. Even with the single, unified construction, the multitude of customization options allows you to create your custom fit design.
Note:Provide finished Wall dimensions. Factory will design custom product with applied tolerances to allow for ease of installation. Caulking material (Provided by others) will be required to ensure no voids along walls are present following installation. Overall width and dimensions for placement of Lavatory Basins are subject to Factory approval.

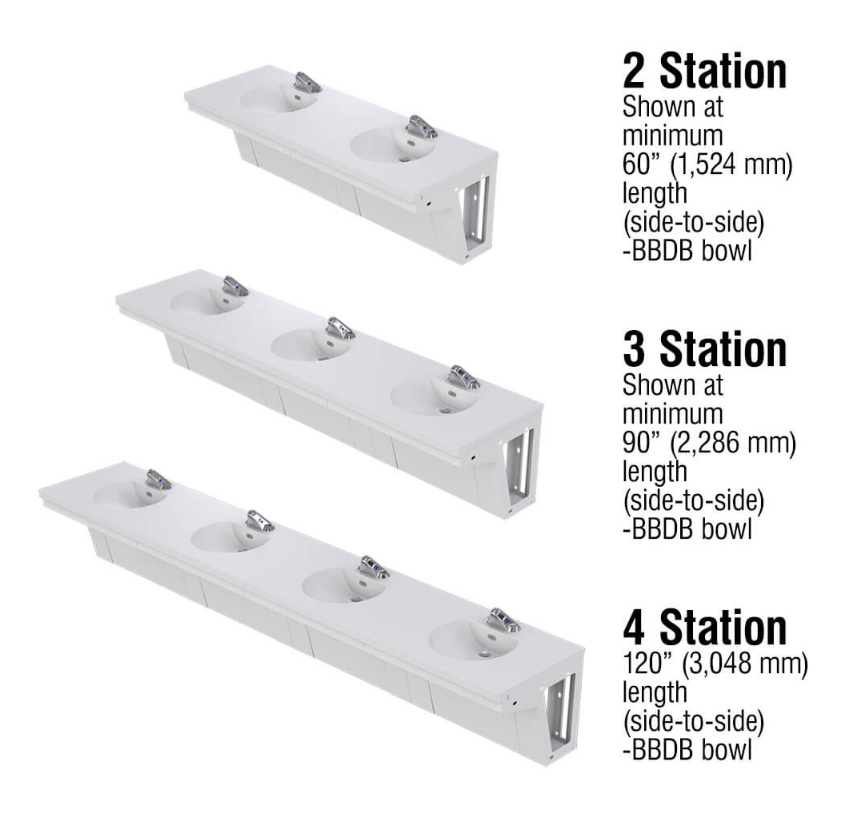

1.Select 2, 3, or 4 stations and length
Start by choosing 2, 3, or 4 stations and the overall length upto 10 feet (3.05 meters) Please provide finished Wall Dimensions. Factory will design custom product with applied tolerances to allow for ease of installation.
2.Select bowl shape
Next, choose basin shape.
Finally, pick your choice for your Corterra® solid surface. Color choices are:
STANDARD COLORS
- OCC11 | Blanco (glossy)
- OCC11M | Blanco (matte)
- OCC18 | Parchment
- OCC19 | Cotton Tail
- OCC20 | Meteorite
- OCC21 | Moonstone Metallic
3.Select faucet and color
Alcove basin accommodate your choice of faucet and placement.
MIXING VALVE Water for the sink may be tempered using a thermostatic mixing valve available optionally through Whitehall. The valve is ASSE 1070 compliant, rated at 4.5 gallons (17 liters) per minute at 45 PSI (310 kPa
MODELS
Models
Each basin includes a ligature-resistant drain fitting with a rear air vent grid at the rear of the basin for optimal drainage. Bottom Enclosure conceals P-trap and waste piping,mounting, valve assemblies and is fabricated from heavy gauge, type 304 stainless steel with exposed surfaces polished to a #4 satin finish.
WH3822-BBRT-H34-OCC11
- Accommodates two users
- Shown as 60" (1,524 mm) side-to-side length
- Shown with rectangular bowls
- Shown with 3 hole 4" centerset faucet punching
- Shown with WH3375-SO faucets
- Shown with Blanco (white) Matte solid surface
WH3822-BBDB-H34-OCC21
- Accomodates two users
- Shown as 60" (1,524 mm) side-to-side length
- Shown with D-shaped bowls
- Shown with 3 hole 4" centerset faucet punching
- Shown with WH3375-SO faucets
- Shown with Moonstone Metallic (grey) solid surface
WH3823-BBED-H34-OCC11M
- Accommodates three users
- Shown as 90" (1,524 mm) side-to-side length
- Shown with Edge style bowls
- Shown with 3 hole 4" centerset faucet punching
- Shown with WH3375-SO faucets
- Shown with Blanco (white) Matte solid surface
WH3824-BBSQ-H34-OCC11M
- Accommodates four users
- Shown as 120" (3,048 mm) side-to-side length
- Shown with square bowls
- Shown with 3 hole 4" centerset faucet punching
- Shown with WH3375-SO faucets
- Shown with Blanco (white) Matte solid surface
