Whitehall Two-Station Compact Scrub Sink, Model 4112
Download Submittal
IN STOCK
This product is available for quick shipment nationwide.

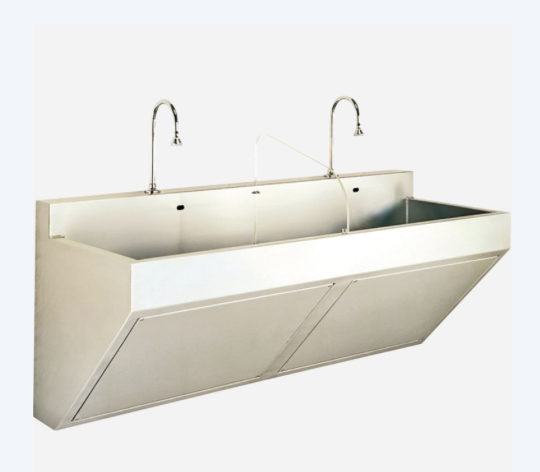

Model 4112
Two-Station Compact Scrub Sink
The Two-Station Compact Scrub Sink features 16-gauge stainless steel construction, convenient sensor-activated faucet, front access panel designed for easy maintenance, and an offset drain to minimize the spread of bacteria. This is a two-station unit measuring 60" (1524 mm) wide.
For increased safety and USP <800> compliance, we’ve added an option for a pull down-activated eye-face wash. Contaminants can be flushed away inside the sink to prevent water on the floor. A mixing valve assembly designed for safety equipment will be provided.
Sink has a 1-1/2" O.D. tail pieces with 3" (76.2 mm) flat strainer drains and gooseneck spout assemblies with removable spray head.
Water for the scrub sink is tempered using a thermostatic mixing valve. The valve is ASSE 1070 compliant.

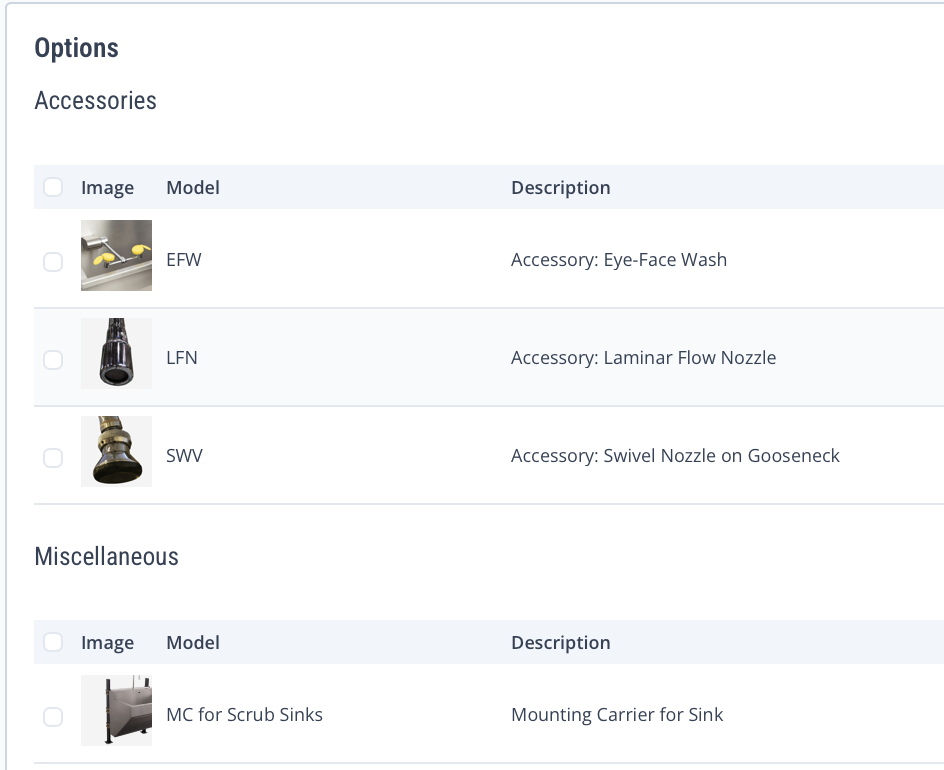

Option -EFW provides a Safety Manufacturing Model SO660 Series Swing Down Eye-Face Wash within the Sink Trough and includes a factory-installed Model ET71-1-BVS-OTG Safety Mixing Valve. Models with -EFW Option comply with USP 800, Section 5.3 Eyewash Station Requirements
Specifications :
|
Waste Location
|
Wall
|
|
Fixture Width
|
60"
|
|
Material
|
Stainless Steel, Antimicrobial Copper-Nickel (custom request)
|
|
Brand
|
Scrub-Ware, Acorn ConTrols Inside
|
|
Legacy Model
|
CSS-2
|
|
CSI Divisions
|
Division 22
|
|
Compliances
|
USP <800>
|
