WD Manor Whitehall Recessed Stainless Steel Dual Door Dialysis Supply and Waste Box with Thermostatic Mixing Valve
Model 8197
Download Submittal

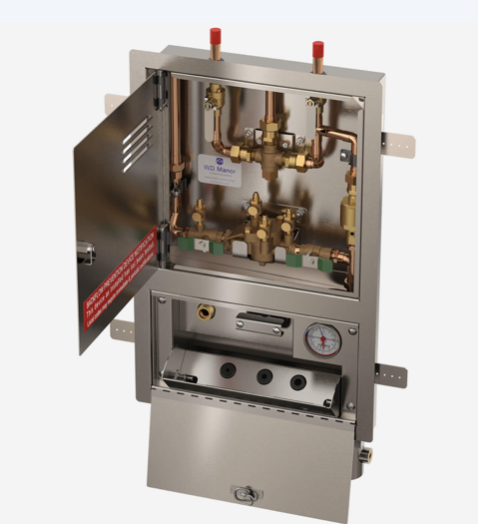

Recessed Stainless Steel Dual Door Dialysis Supply and Waste Box with Thermostatic Mixing Valve
The W.D. Manor by Whitehall Recessed Dialysis Supply and Waste Box features innovative dual-door design to conceal plumbing components from staff and patients, while exposing only Supply and Waste components during use, enhancing its appearance and providing superior infectious control.
Upper Compartment
Lower Compartment
Dialysis Box
Note: this product is not intended for reverse osmosis or deionized water supply.
Mixing Valve
The mixing valve in the upper compartment is ASSE 1070 compliant, rated at 4.5 gallons (17 liters) per minute at 45 PSI (310 kPa)
Specifications:
Brand
W.D. Manor by Whitehall Manufacturing, Acorn Controls Inside
Material
Stainless Steel
Type of Mount
Recessed
Features
Isolation Ball Valve, Backflow Preventer, Thermometer Gauge, Thermostatic Mixing Valve, Trap Primer
Patent
9724457, Additional patents pending
Legacy Model
WDMDB-TMV
Compliances
ASSE, CSA, Federal Public Law 111-380 - No Lead, UL, UPC
CSI Divisions
Division 22
